Thursday, June 30, 2016

Facebook page

One more channel to share and engage:

Getting Surveillance Camera Snapshot with Spark Chatbot

Bear with me if it is just too much.  I am developing different use cases with Spark that might be useful for myself.  Yesterday I had posted these two use cases:

Device monitoring:

Config backup:

Another use case is I can ask the chatbot to send my home surveillance camera snapshot to me via Spark.  In a lot of time I don't need the live video as it consumes cellular bandwidth.  A snapshot is usually work to get a feeling what my children are doing at home.

Previous use cases:
Network monitoring -
Config backup -
Energywise demo with bot -

Wednesday, June 29, 2016

Using Spark to monitor device availability

This is another use case I used Spark in my lab, to check the availability of my lab devices.  When there is outage, the chatbot will alert me proactively so that I can check and troubleshoot the issue earlier rather than later.

My DX70 is now on CE 8.2!

Conversion Doc:

CE 8.2 on DX is live now!

Conversion Doc:

Migrate DX70/80 devices from Android to CE software

The guide is now posted:

Using Spark for my routers and switches config backup

Not the most innovative idea in the world, but it works for me.  In my home and lab there are quite a number of routers and switches.  This is what I've configured on the devices to periodically upload the config to the FTP server

ip ftp source-interface
ip ftp username nms
ip ftp password nms
file prompt quiet
kron policy-list backup
 cli copy running-config
kron occurrence daily-backup at 0:30 recurring
 policy-list backup

There is another script running on my Linux host to post these config files to Spark using the Spark Message API.  Good thing for Spark is it is persistent, and I can store the config files there as long as I want.

I do it for my development source code too, similar concept.

A script will be executed every night using the linux box cron job to get this done.  Or do it manually, by asking my chatbot to do it.

Thursday, June 23, 2016

UDS API - Query User info

You can query the user information with the UDS API, it is a HTTP GET request and if the LDAP search UDS proxy feature is enabled on 11.5, you can use it to query the LDAP users with this API.

This is the HTTP GET request that I've used for the below screen capture:

Read-only AXL in UCM 11.5

One of the improvements in UCM 11.5 is it has a new standard user roles that restrict users to have read-only AXL access.  It provides better security and reduce chance of human errors in accessing the UCM database.

User management > User settings > Role

Sunday, June 19, 2016

Field notice - old phones are not going to support on UCM 11.5

As per my previous post regarding old phone is no longer support on UCM 11.5:

There is an official field notice issued a few days ago, so make sure you plan ahead before upgrading your system if you are still using these old phones:

  • Cisco IP Phone 12 SP+ and related models
  • Cisco IP Phone 30 VIP and related models
  • Cisco Unified IP Phone 7902
  • Cisco Unified IP Phone 7905
  • Cisco Unified IP Phone 7910
  • Cisco Unified IP Phone 7910SW
  • Cisco Unified IP Phone 7912
  • Cisco Unified Wireless IP Phone 7920
  • Cisco Unified IP Conference Station 7935

Saturday, June 18, 2016

Multistream meetings - Layout

Multistream is a new feature introduced in CE 8.0.  This is the Cisco implementation of H.264 SVC.  This post is targeted to share with you the difference in the layout and user experience for pre-CE and post-CE 8 endpoints.

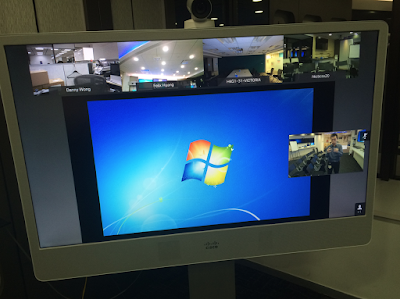

This is the layout of a multi-party conference call on MX300G2 with CE 8 firmware.  The call is terminated on a mm820 telepresence server blade with multistream enabled.  It has a maximum 4 participants at the top when the remote end is sharing the presentation.  The number of additional participants are showed at the bottom right corner.

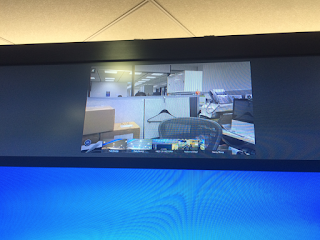

Comparing with this SX20 endpoint that is running TC 7.3.4 and you can spot the difference.  Presentation is occupying the majority of the screen, and the main video at the top is showing active speaker as the major portion, with tiny activepresence for non-active speaker at the bottom of the main video.  There is significant improvement of user experience with multistream enabled.

From the call statistics on the web interface, you will notice there are multiple incoming video instead of a single video from Telepresence Server.

Cisco Spark Bot + Energywise Demo

I have developed a very basic bot and one of the use case that was developed is the energy control use case.  I can talk to my bot and ask the bot to switch off / on the energy of my Cisco DX650 phones using the energywise command of the Cisco switch.

This bot is based on the Flint project in Github, for more information please check it out here:

Friday, June 17, 2016

Old phones will not be supported in UCM 11.5

This is something that caught my attention.  Unlike the previous release, in UCM 11.5 it is going to remove some of the old phones support.

Deprecated Endpoints
As of Cisco Unified Communications Manager Firmware Release 11.5, the following phones are not supported:

  • Cisco IP Phone 12 SP+ and related models
  • Cisco IP Phone 30 VIP and related models
  • Cisco Unified IP Phone 7902
  • Cisco Unified IP Phone 7905
  • Cisco Unified IP Phone 7910
  • Cisco Unified IP Phone 7910SW
  • Cisco Unified IP Phone 7912
  • Cisco Unified Wireless IP Phone 7920
  • Cisco Unified IP Conference Station 7935

If you use any of these phone models on an older release of Cisco Unified Communications Manager and you upgrade to Release 11.5, the phone will not work after the upgrade completes.

Phone registration to Spark Call Services

My lab 8861 registers to the Spark Call Services in the cloud.  I am using a Cisco dCloud setup that has recently updated with this Spark Call capability.  The experience will be even better if I have a 8865 / 8845 video phone to recognise the QR code to get the activation code, which I don't have it with me.

Clean and nice user interface!

More info:
